Major Tech MTiB12 Body & Surface Thermal Imager
$
62.23
$
47.87
Title
Please select combo product attributes
The combo subtotal is $,SAVE
$
Unavailable
Quantity
-
+
ADD TO CART
BUY IT NOW
- 80 x 80 pixel thermal imaging system
- 6400 points real temperature fast measurements
- Screening Temperature mode 32-42°C
- Measuring Accuracy: ±0.5°C
- Thermal sensitivity: <0.1°C | 300°C / 100mK
- 50Hz fast Thermal image frame rate
- Hot, Cold, Centre three temperature tracking function
- Large, easy-to-read, bright graphical TFT display
- Bluetooth image instant share & save with iOS and Android smart device
- Scene temperature range Lock function.
- With LED flashlight function
- Long running time up to 8 hours with rechargeable battery
- Smart and compact design
- Rugged industrial design
- Data Logging

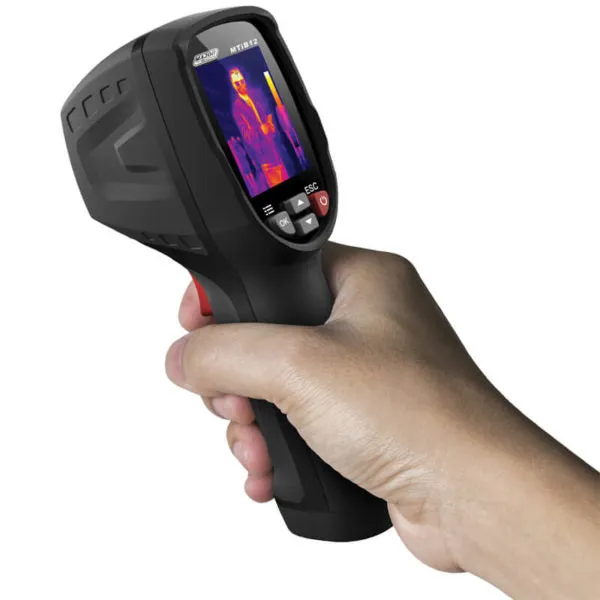

The MTiB12 Body & surface Thermal Imager is a handheld thermal imaging camera used for measuring body temperature and can also be used for predictive maintenance, equipment troubleshooting and verification. The MTiB12 features a 20mS sampling rate and is ideal for scanning multiple targets. The adjustable High alarm makes it easy to instantly identify a person in a group that has an above average temperature. Thermal images are displayed on the LCD display and can be saved on the internal memory. With Bluetooth and an instant share function, the thermal images can be transferred to one’s smart phone to analyze, share and perform quick reporting.
Specifications
| Function | Range |
| Imaging and Optical Data | |
| Field of View | 21⁰ x 21⁰ |
| Spatial Resolution (IFOV) | 4.53mrad |
| Thermal Sensitivity/NETD | <0.1⁰C @ 30⁰C / 100mK10.12:1 |
| Image Range | 50Hz |
| Focus mode Manual | |
| Focus Mode | Focus Free |
| Focal Length | 7.5mm |
| Focal Plane Array (FPA)/Spectral Range | Uncooled microbolometer / 8-14um |
| IR Resolution | 80 x 80 pixels |
| Image Presentation | |
| Display | 22 colour TFT LCD, 240 x 320 pixels |
| Image Modes | IR Image |
| Colour Pallets | Iron, Rainbow, Grey, Grey Inverted, Rainbow high contrast |
| Measurement | |
| Temperature Range | -20⁰C to 380⁰C |
| Temperature Accuracy | ± (2.0% 2⁰C) |
| Body Temperature Range | 32⁰C to 42⁰C |
| Body Temperature Accuracy | ± 0.5⁰C |
| Storage | |
| Images Format | Bitmap (BMP) including measurement data |
| Size | 175 x 58 x 70mm |
| Weight | 450g |
Includes:
- Instruction Manual
- Rechargeable Battery
- Battery Charger
